Description

The front door moves vertically up and down concealed counter balanced weight. The blower and motor assembly is statically and dynamically balanced & operates with minimum noise level. Height of the working table provides comfortable “SIT DOWN” working position for the operator. The front facing panel is fitted with 15/5 Amp socket with switches for exhaust system and fluorescent light. Supplied complete with cord & plug to work on Single Phase 220 / 230 Volts A.C. supply.

Note :-
Face Velocity:-80-120 FPM (Average at 12" Sash opening Fume Hood) as per ANSI
Air volume: 800-1000 CFM (Designed for Full door opening)
Available Working Size (in Feet):-
2x2x2 / 3x2x2 / 4x2x2 / 6x2x2 OR ANY NON STANDARD SIZE
Optional :-
1. Inner FRP Lining
2. Inner Stainless steel Lining
3. Inner special lining for Acid digestion or Protein digestion application
4. Base Storage Cabinet for 2x2x2 / 3x2x2 / 4x2? / 6x2x2 or Other
5. Feather touch button panel LED light indication for Motor, F.V. Light and mains
6. Digital air Flow display
7. Automatic Motorized Front Door Lifting Arrangement
8. PVC ducting 6"(per running feet)
Note: The right side of the original image is cut off, so a few words in the main paragraph cannot be read completely. I have kept the visible text as it appears.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Fume Hood”

Shipping and Delivery

Shipping & Delivery

We ensure safe and reliable delivery of our products to customers across different locations. Products are carefully packed and handled to minimize the risk of damage during transportation.

Delivery

Delivery timelines depend on the product type, specifications, quantity, and destination.
Customized and made-to-order equipment may require additional processing time.
Delivery schedules will be confirmed at the time of order.
Large laboratory and industrial equipment is transported using suitable logistics arrangements.
Customers will be provided with relevant dispatch and delivery details once the order is processed.

Installation & Support

Where applicable, installation, commissioning, and technical support can be arranged based on the product and customer requirements.

Click to enlarge

United Sales Corporation

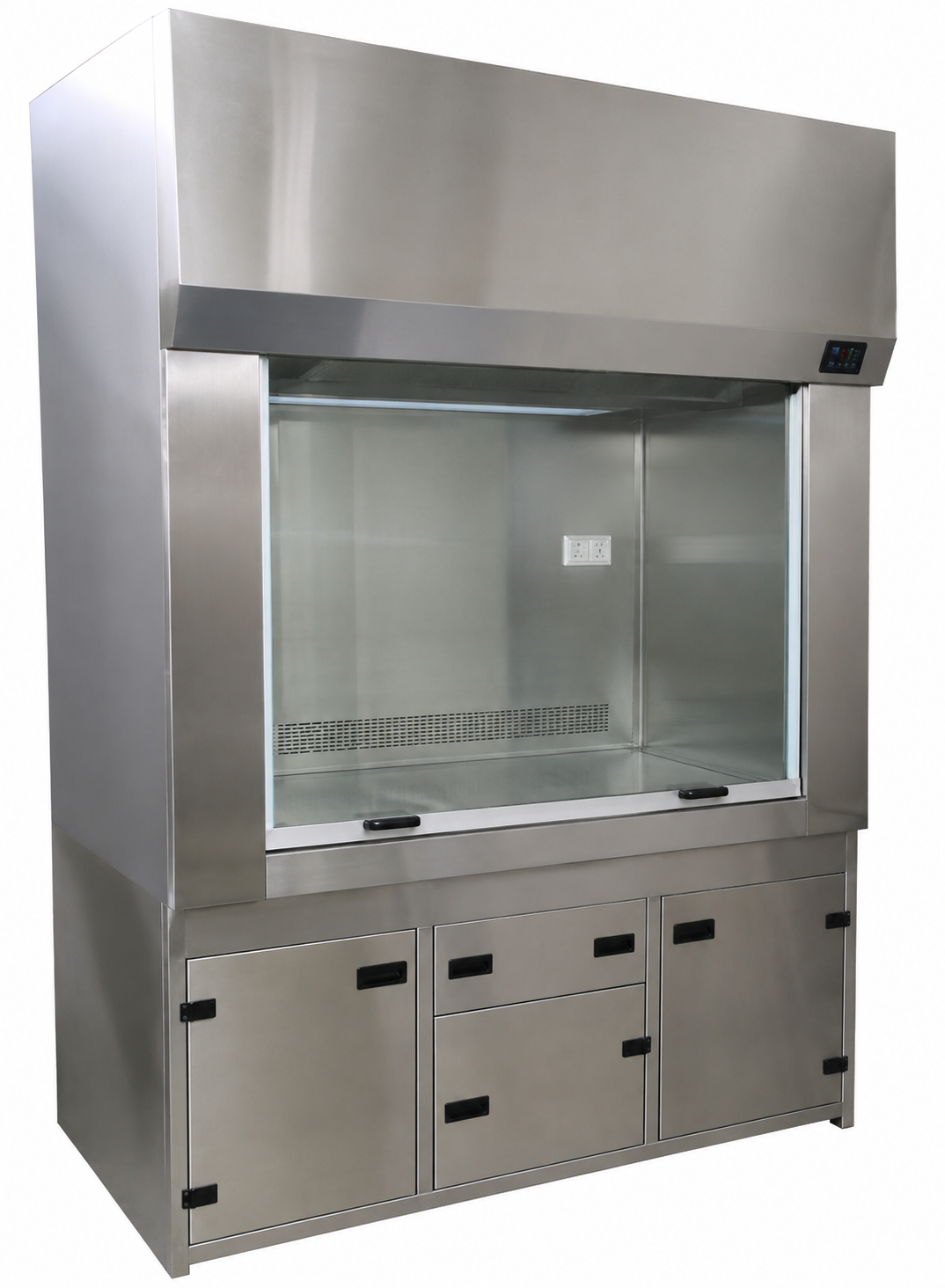

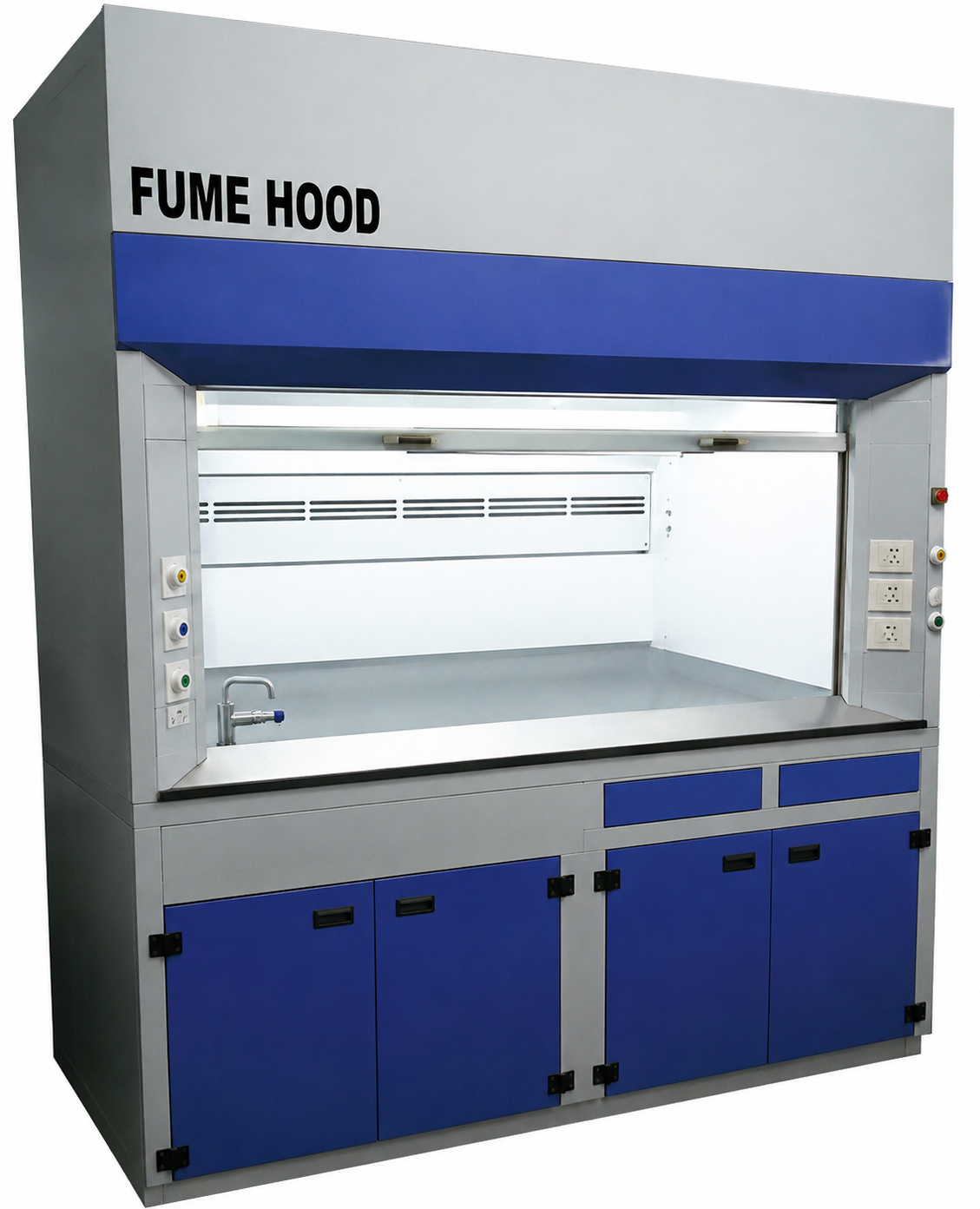

Fume Hood

Confirms to ASHRAE-110-1995 standard. Generates a negative pressure inside the hood thus facilitating removal of all contaminants from the works area, into the atmosphere. Basic material is Galvanized steel (G.I.) duly powder coated OR Stainless Steel (SS-304) (as prdered). All interior surfaces are sealed and checked for leakage. Work table is made of Stainless Steel (SS-304) Or Granite stone (as ordered). Working area is illuminated by fluorescent lighting fitted to the unit.
