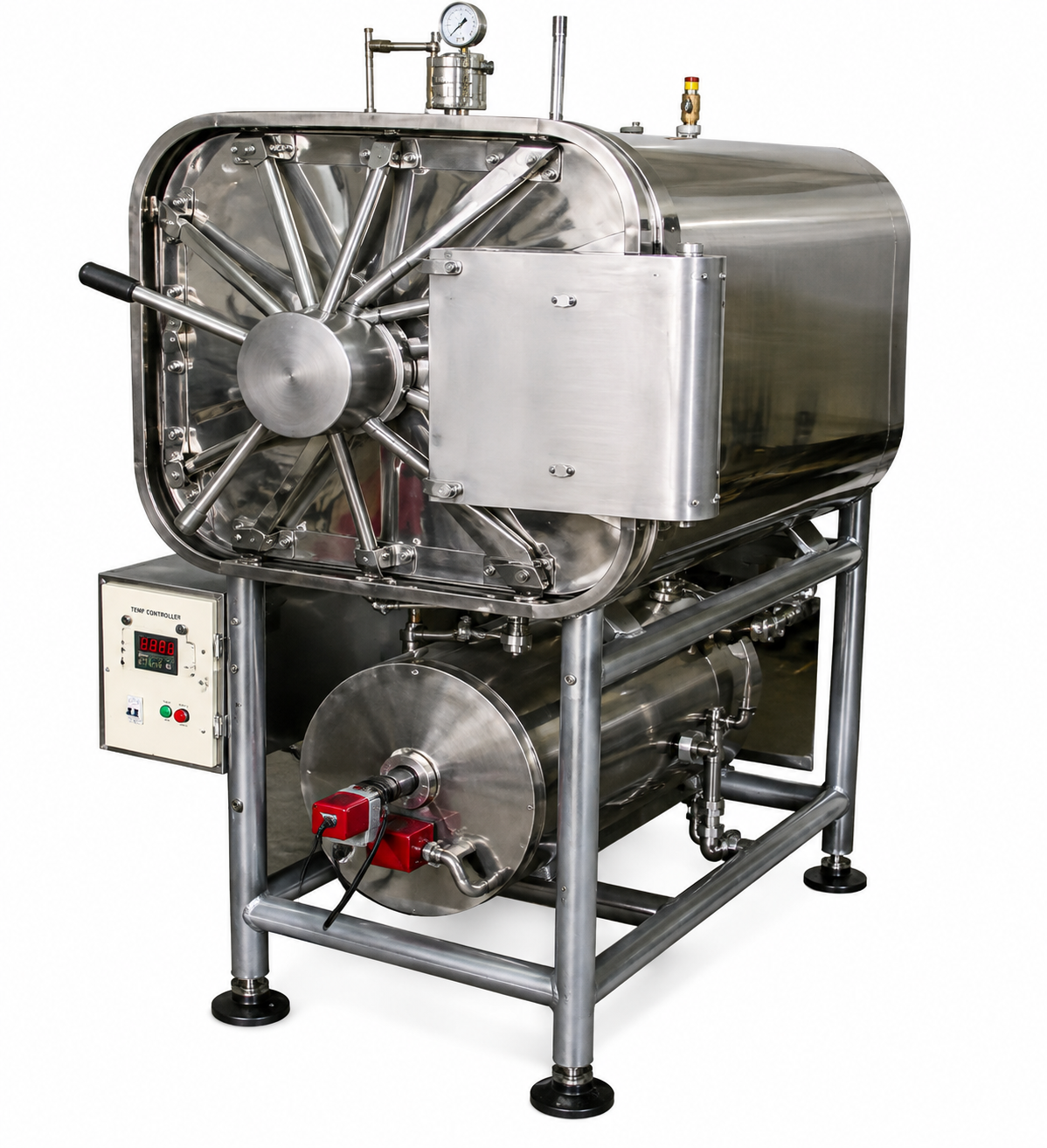

Autoclave Horizontal (Rectangular)

Triple walled unit with inner chamber made of stainless steel 304 grade.
Outer Body constructed from S.S. 304 grade / Mold steel powder coated.
Lid Closing by Radial Locking System.
Sealing of Lid by Neoprene/Silicon Rubber Gasket. It is provided with Silicon Gasket, pressure gauge, pressure release valve S.S. Basket, safety valve, water level indicator & Pressure control switch.
Operating range from 5psi to 20 psi pressure.
Sterilizing Temperature up o 134°C.
Tested up to 2.5 times of required Pressure.
Voltage : 220 Volts AC (50Hz)

Description

Available Size:
Working Size | Ltrs.
450X450X 900 mm(18"x18"x36") — 192
500X500X 900 mm(20"x20"x36") — 235
600X600X1200 mm(24"x24"x48") — 454
600X900X1500 mm(24"x36"x60") — 850
900X900X1500 mm(36"x36"x60") — 1278
OR ANY NON STANDARD SIZE
Optional :-
1. Water Level cut Off device.
2. Digital Temp. Controller cum Timer (both in-built).
3. Fully automatic operation with features like Setting Sterilization Temperature Soak. Time, Purge On / Off set point Exhaust Point High Alarm Set Point ETC. (AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set / desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.)
4. PC communication through RS 485 connectivity.
5. Microprocessor based Touch Screen display system with either printing or communication option.
6. Double door arrangement.
